Professional   series

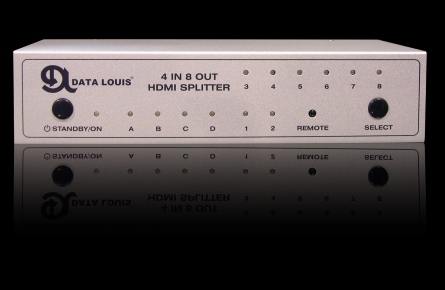

4 in/ 8out HDMI 1.3 Compatible with HDMI and DVI system
Real-time monitor everyone port status
Auto configure switch response time
Support high video resolution up to 1920x1080p @60Hz/24Hz.
Support signal data rate up to 2.25Gbps of UXGA Display.
Plug and play, no any software installation is required.
Space saving solution (allow multiple sources to share one HDMI display)
Real-time auto check channel status.
Auto Switching from Four Digital HDMI or DVI multimedia source.
Link to digital TV, HDMI flat panel monitor or other support HDMI device
Link to DVD Player, Satellite Receiver, Set –top box, Play Station 3, Digital Camera , Camcorder, Personal Computer source output

▲

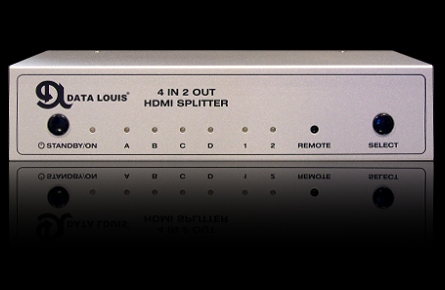

4 in/ 2out  HDMI 1.3 Compatible with HDMI and DVI system
Real-time monitor everyone port status
Auto configure switch response time
Support high video resolution up to 1920x1080p @60Hz/24Hz.
Support signal data rate up to 2.25Gbps of UXGA Display.
Plug and play, no any software installation is required.
Space saving solution (allow multiple sources to share one HDMI display)
Real-time auto check channel status.
Auto Switching from Four Digital HDMI or DVI multimedia source.
Link to digital TV, HDMI flat panel monitor or other support HDMI device
Link to DVD Player, Satellite Receiver, Set –top box, Play Station 3, Digital Camera , Camcorder, Personal Computer source output

▲

4 in/ 2out  HDMI 1.3 Compatible with HDMI and DVI system
Real-time monitor everyone port status
Auto configure switch response time
Support high video resolution up to 1920x1080p @60Hz/24Hz.
Support signal data rate up to 2.25Gbps of UXGA Display.
Plug and play, no any software installation is required.
Space saving solution (allow multiple sources to share one HDMI display)
Real-time auto check channel status.
Auto Switching from Four Digital HDMI or DVI multimedia source.
Link to digital TV, HDMI flat panel monitor or other support HDMI device
Link to DVD Player, Satellite Receiver, Set –top box, Play Station 3, Digital Camera , Camcorder, Personal Computer source output

▲

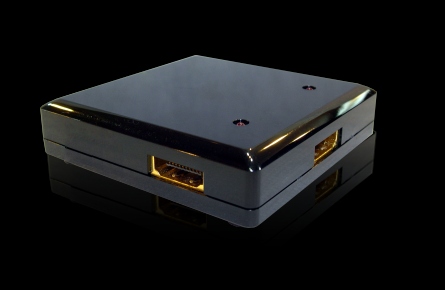

1.HDMI輸入埠,可連接1~5m HDMI 28 AWG 線材.使用者可以將HDMI連接線, 自行連接上任一個具有 HDMI 輸出能力的HD裝置, 例如PS3, 桌上型個人電腦, 筆記型電腦, HD DVD撥放器, 多媒體HD錄放影機, HD 攝影機等.
2.HDMI輸出埠, 可連接1~ 15m 28AWG HDMI線材, 使用者可以將HDMI連接線, 自行連接上任一個具有 HDMI 輸入的裝置, 如: 液晶電視,電漿電視,數位式投影機,電腦螢幕, HDMI分配器, HDMI 選擇器,HDMI信號放大器.
3.支援解析度:HDTV：1080P, 1080I, 720P, 576P, 480P, 576I, 480I 。
PC：UXGA, SXGA, XGA, SVGA, VGA 。
4.電源輸入: 5.3V DC 500~800mA.
5.尺寸: (68mm)W x (68mm)H x (18mm)D

▲

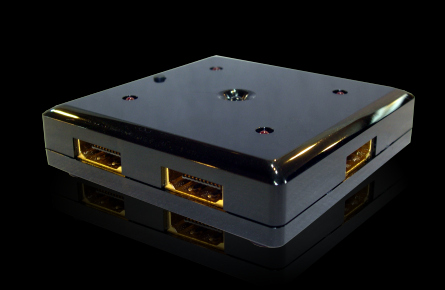

1.HDMI 輸入埠,可使用1~15 m長的HDMI 28AWG線材。
2.HDMI輸出埠,可使用1~10m的HDMI 28AWG線材。
3.對應器材:SONY Play Station 3/電腦/Blu-Ray Disc / HD-DVD1放器, 數位多媒體錄放影機或 FULL HD數位攝影機來相接。
4.使用電源:5V直流 500mA 電源變壓器輸入(附85~240交流電源轉換至 5V直流電源輸出變壓器) 。
5.外接式搖控線輸入孔, 可以延伸感應器至所需的位置, 因此裝置設有自動硬體偵測功能, 固於供電狀態下插入此感應線時, 系統會重新啟動以保護自我. 在此建議先安裝感應線後再加入5V直流電源。
6.支援解析度:HDTV：1080P, 1080I, 720P, 576P, 480P, 576I, 480I 。
PC：UXGA, SXGA, XGA, SVGA, VGA 。
尺寸: (50mm)W x (50mm)H x (18mm)D

▲

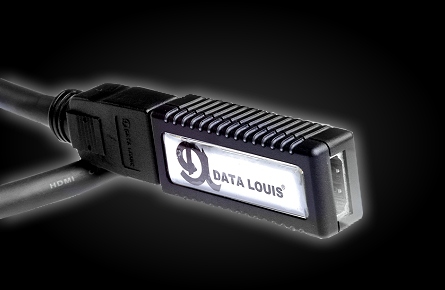

傳輸頻寬: 1.65 GHz
支援解析度:480P/720P/1080i/1080P
最高傳輸距離: 40M/1080P 50M/1080i
使用電壓: 5 Volts
HDMI 型式: Type A 19 pin
消耗功率: 2.5 Watts (max.)
尺寸: (55mm)W x (22mm)H x (15mm)D

▲

總經銷 :概念電器有限公司      台北市中華路一段29-4號

TEL:(02)2381-2712  02-2382-0699     FAX :02-2381-4135
